PULSE POPUP 30-45 Degree Diverter
Highly efficient and compact divert solution.

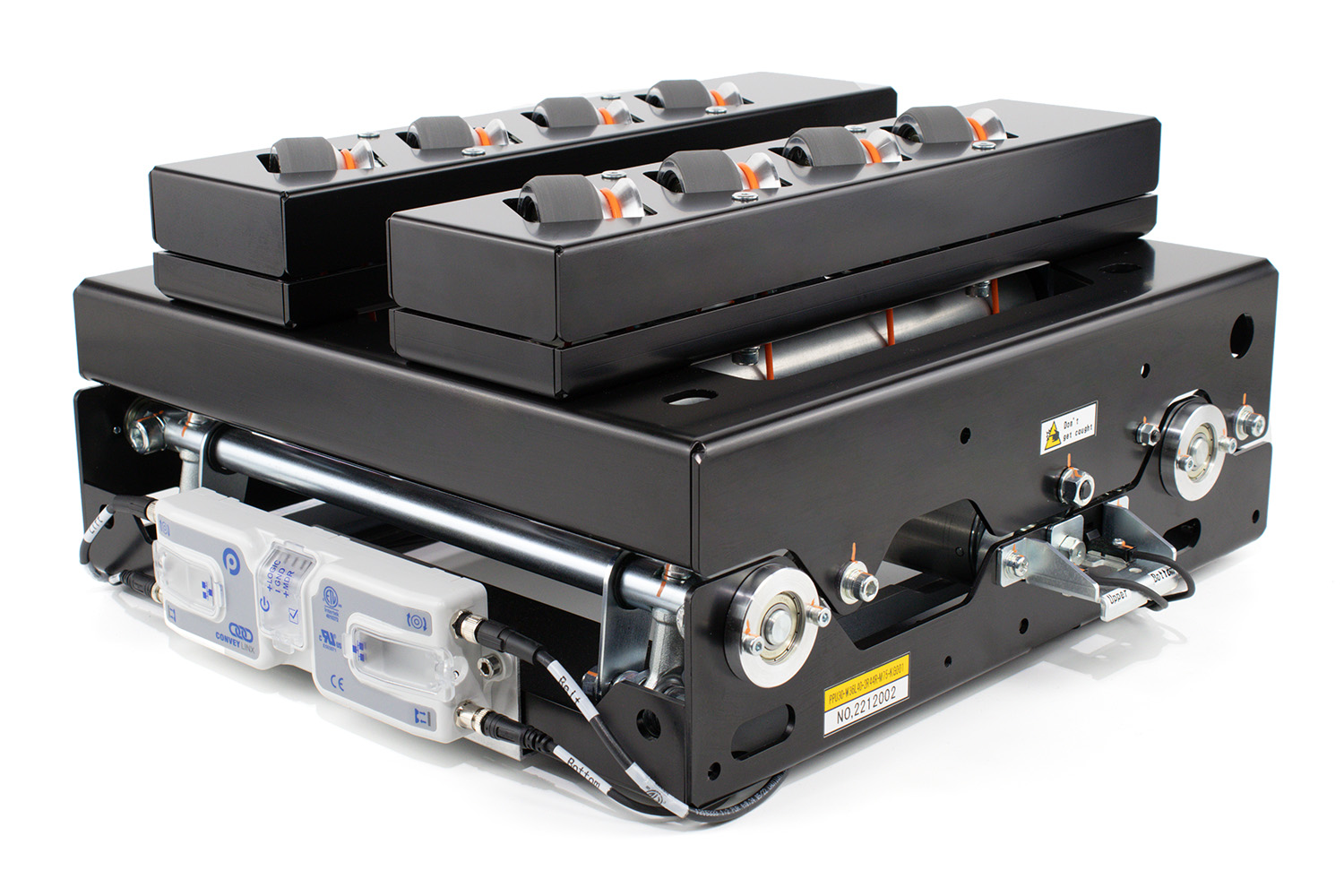

The PULSE POP-UP (PPU) assembly is used to quickly and efficiently divert product off a main line conveyor onto conveyor leading to other parts of your facility.
Often utilized in sorting applications, we've seen applications with just one PPU, and we've seen applications where there's one after another down a stretch of a mainline diverting to multiple different lanes effectively creating a sortation conveyor.
This unit will drop in place within your main line conveyor and includes everything required to get the job done including the controller to move the divert wheels and carrying surface as well as the motors for the up and down and the carrying surface.
- Seamless integration in Pulseroller applications
- Machine independent from conveyor
- High throughput
- Easy installation
- Choose 30º or 45º divert
- Compact design
- Bolt-in installation takes minutes
- Fully MDR driven (no pneumatics)
- Low maintenance – no lubrication requirements
- Effectively create a sortation conveyor
General Technical Data
- Dimensions (L x W mm): 440 x 338 mm | 440 x 448 mm | 440 x 588 mm | 440 x 688 mm
- Number of Driving Wheels: 4 | 5 | 6 | 7
- Load Size Min (L x W mm): 300 x 200 mm (≈ 12" x 8")
- Load Size Max (L x W mm): 600x 450 mm (≈ 23" x 18")
- Load Weight Max: 30 kg (≈ 66 lbs)
- Max Sorting Speed: Up to 90 m/min with a 75 speed code (≈ 195 ft/min)
- Throughput: Up to 2400/hour depending on product size
.png)
How to Order a PPU Unit
Each unit is made to order and its mounting is custom made to match your particular conveyor dimensions. When you contact Pulseroller to place an order for the part number you want, we will need to know the following additional information to complete your order:
Conveyor Dimensions
¹ Irregular mounting hole pitches and locations may be accommodated. Contact us for details
² For Senergy-Ai motor rollers, you can specify ConveyLinx-Ai2 or MotionLinx-Ai controllers
