ConveyNet-IP

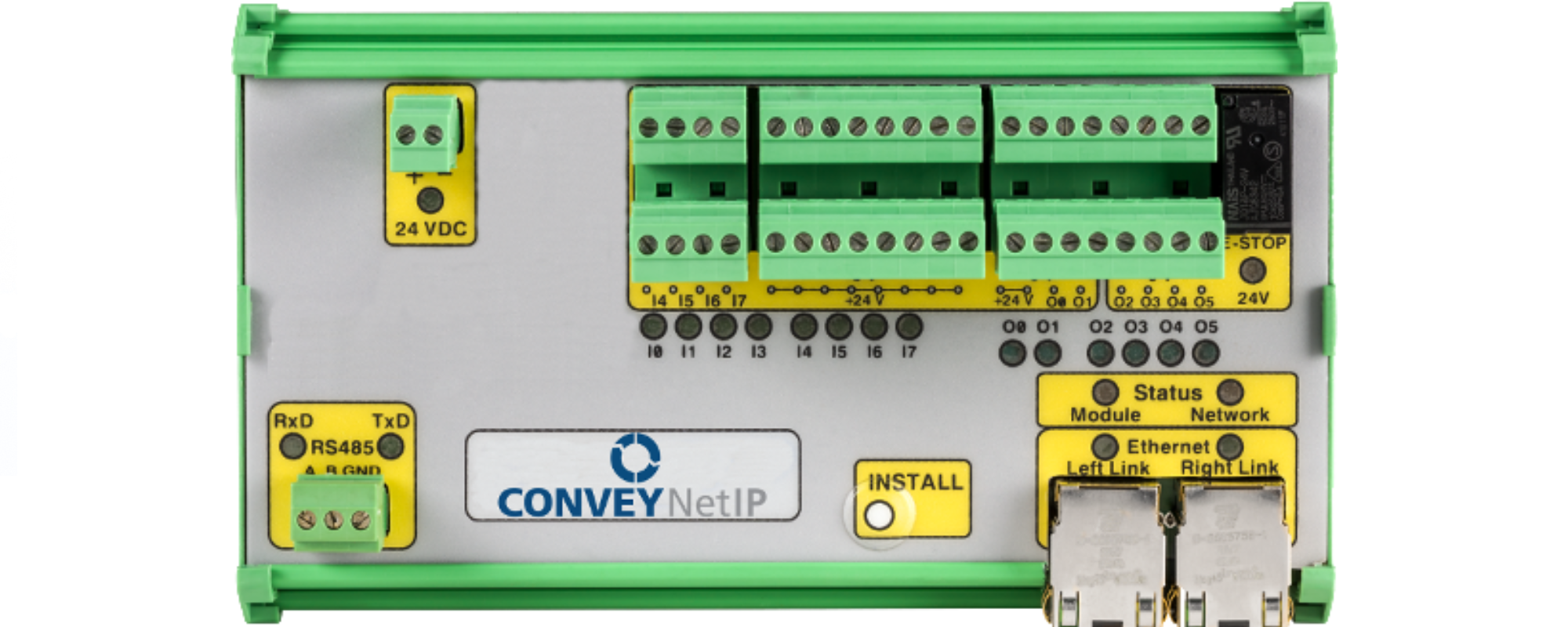

ConveyNet-IP is a Digital I/O module equipped with EthernetIP, ModbusTCP, and ProfiNet for use with the ConveyLinx control architecture, general remote I/O, or as a standalone PLC.

Benefits
CONTACT US
Eight inputs and six relay outputs allow you to place this module right in series with a ConveyLinx system for additional I/O points. Use it for stack lights, transfers, pushers, or a myriad of other uses.

We understand that drive motors don't solve every application. With ConveyNetIP's digital I/O, there is also an RS485 port for communication purposes. Use the RS485 port to connect to most variable frequency drives to gain access and control a drive over the ethernet network.

Imagine a six lane sortation system, with MDR upstream and downstream, and an AC motor running the sorter belt. Now use our solutions to give you complete visibility and control of the MDR upstream and downstream utilizing ConveyLinx and ConveyNet-IP to control the Sorter VFD and all the I/O on the sorter belt. Best of all, this can all be controlled with just one ethernet wire back to the PLC.

  • Modbus TCP, EthernetIP or ProfiNet I/O distributed communications
  • Remote VFD control possible with the RS485 output
  • Pushbutton configuration
  • User programmable using ConveyLogix programming software
  • Reduced system installation cost
  • Seamless integration with ConveyLinx and ConveyBlox
  • Modbus TCP, EthernetIP or ProfiNet I/O distributed communications
  • Works with any Ethernet-capable PLC

Card title

Card subtitle

Some quick example text to build on the card title and make up the bulk of the card's content.

Card linkAnother link
  • Reduces Cost and Saves Time
  • Super Compact Design
  • Deterministic Network
  • Collects Important Information
  • Robust M8 Connections
  • CE ETL UL and IP54
    • Simple to Configure
    • Simply push a button.
    • Versatile (and Can Save Money!)
    • Modbus TCP, EthernetIP or ProfiNet I/O distributed communications. It works with any ethernet-capable PLC, and can even function as a standalone PLC.
    • Eight inputs and six relay outputs allow you to place this module in series with a ConveyLinx system for additional I/O points.  Use it for stack lights, transfers, pushers, or a myriad of other uses.
    -CE certified, RoHS compliant, IP54 raitng
    -ETL Certified to UL Standards (Optional)
    -Tube material:Mild stell, zinc plating/ Stainless steel (SUS304)
    -Roller diameter:48.6 mm (1.9"), 50.0 mm (1.97")
    57.0 mm (2.24"), 60.5 mm (2.38")
    -Min. roller length:Refer to the "Availale minimum roller length table" below
    -Max. roller length:1000 mm *Contact us for longer than 1000 mm.
    -Cable length:600 mm (SENERGY) / 1000 mm (SENERGY-Ai)
    *Contact us for extension cables
    -Motor Connector:JST (SENERGY) /M8-4pin (SENERGY-Ai)
    -Operation:0.5 sec ON / 0.5 sec OFF duty cycle (Minimum)
    or continuous within rated load

    Technical data

    ECO modeBOOST modeBOOST-8 mode
    VoltageDC24V
    Nominal Output40W50W50W
    Rated current 2.5A3.5A3.5A
    Starting current 3.0A5.0A8.0A
    Ambient temperature 14 ~ 140°F
    Ambient humidity 10 ~ 90% RH (No condensation)

    Characteristics data

    *Rated torque and rated tangential force of BOOST-8 are the same value as BOOST.*BOOST-8 performance is available with EZ-24HTB and ConveyLinx HTF card only
    Speed codeGear boxGear ratioECO modeBOOST & BOOST-8 mode
    Speed
    (f/min)    		Torque (in-lbf)Tangential force (lbf)Current (A)Speed
    (f/min)    		Torque (in-lbf)Tangential force (lbf)Current (A)
    RatedStartingRatedStartingRated (max)StartingRatedBOOST StartingBOOST-8 StartingRatedBOOST StartingBOOST-8 StartingRated (max)BOOST StartingBOOST-8 Starting
    153 stage45.006.4 ~ 64.726.2145.027.4151.62.53.06.4 ~ 46.847.4189.1215.049.9197.7224.83.55.08.0
    2033.008.8 ~ 88.319.2106.220.1111.08.8 ~ 63.934.9138.4157.436.5144.7164.5
    2527.0010.7 ~ 107.815.787.016.490.910.7 ~ 77.928.6113.5129.029.9118.6134.8
    352 stage18.3315.8 ~ 159.010.659.011.161.615.8 ~ 115.019.476.987.420.380.491.4
    4515.0019.2 ~ 194.08.748.39.150.519.2 ~ 140.315.963.071.616.665.974.9
    6011.0026.3 ~ 285.06.435.46.737.028.3 ~ 191.611.646.152.412.148.254.8
    759.0032.1 ~ 323.25.229.05.430.332.1 ~ 233.89.537.843.09.939.544.9
    951 stage6.818242.3 ~ 426.73.921.94.122.942.3 ~ 308.67.228.632.57.529.934.0
    1255.0057.7 ~ 581.92.916.13.016.857.7 ~ 420.85.321.023.85.521.924.9
    1753.666778.8 ~ 794.92.111.82.212.378.8 ~ 574.83.815.317.44.016.018.2
    2153.0096.2 ~ 969.81.79.61.810.196.2 ~ 701.33.112.614.33.313.114.9
    • Robust and Unique Gearbox Design significantly improves life expectancy
    • Provides wide ranges of Speed and Power using Low Energy
    • JST Cabling for Simple Installation and Robust Cable Routing, IP54
    • CE Approved
    • ROHS Compliant
    • ETL Certified to UL Standards Available
    • IP54 & IP66 Ratings Available
    • ETL Certified to UL Standards Available
    • High Torque Rollers Available
    • Freezer and Wash-Down Rated Rollers Available
    • Mechanical Braking Available
