The Pulse Geared Drive (PGD / PGD-Ai) can be used to replace pneumatic and AC drives in conveyor or automation applications.

Our Pulse Geared Drive (PGD / PGD-Ai) is designed to be easily implemented into automation systems such as transfers, lifts, pop up wheel diverters, turntables and many other motion control applications where precision servo-like performance is required.
Another advantage of PGD / PGD-Ai products is that they utilize the same networked motor controllers as our Senergy Motor Drive Roller products. This allows for seamless controls integration with the motor rollers on your conveyor system which also means less cost and easier maintenance and support. With our fully integrated programmable control package, a PGD / PGD-Ai solution can easily accomplish near-servo performance at a fraction of the cost of a servo motor.
- Senergy engine with 24DC power
- Heat-treated reinforced planetary gearbox
- Wide range of speed and torque options
- Compact design for mounting under rollers or in complex mechanisms
- Double bearing output shaft
- Available options for Micro-V pulley attachment, mechanical holding brake, and washdown rating





PGD-06-001 STEP
Part Number: PGD-006-001
Updated: 30-May-2020 Format: STEP
Description: PulseRoller Micro-V Accessory Kit. Fits any PGD024-SExAAA with standard shaft.PGD-06-001
Part Number: PGD-006-001
Updated: 30-May-2020 Format: DWG
Description: PulseRoller Micro-V Accessory Kit. Fits any PGD024-SExAAA with standard shaft.PGD-06-001
Part Number: PGD-006-001
Updated: 30-May-2020 Format: PDF
Description: PulseRoller Micro-V Accessory Kit. Fits any PGD024-SExAAA with standard shaft.PGD024-SE1-91AAA
Part Number: PGD024-SE1-91AAA
Updated: 28-Aug-2023 Format: DWG
Description: Pulse Geared Drive (PGD) with Senergy JST Motor Connector. Drawing for 3 Stage Gearbox 91 Gear Ratio only.PGD024-SE1-91AAA
Part Number: PGD024-SE1-91AAA
Updated: 28-Aug-2023 Format: pdf
Description: Pulse Geared Drive (PGD) with Senergy JST Motor Connector. Drawing for 3 Stage Gearbox 91 Gear Ratio only.PGD024-SE1-91AAA
Part Number: PGD024-SE1-91AAA
Updated: 28-Aug-2023 Format: STEP
Description: Pulse Geared Drive (PGD) with Senergy JST Motor Connector. 3D model for 3 Stage Gearbox with 91 Gear Ratio only.PGD024-SE1-xxAAA
Part Number: PGD024-SE1-xxAAA
Updated: 28-Aug-2023 Format: DWG
Description: Pulse Geared Drive (PGD) with Senergy JST Motor Connector. Same drawing for 2 & 3 Stage Gearboxes. 3 Stage Gearbox up to 67 Gear Ratio.PGD024-SE1-xxAAA
Part Number: PGD024-SE1-xxAAA
Updated: 28-Aug-2023 Format: pdf
Description: Pulse Geared Drive (PGD) with Senergy JST Motor Connector. Same drawing for 2 & 3 Stage Gearboxes. 3 Stage Gearbox up to 67 Gear Ratio.PGD024-SE2-91AAA
Part Number: PGD024-SE2-91AAA
Updated: 28-Aug-2023 Format: DWG
Description: Pulse Geared Drive (PGD) with Senergy-Ai technology (M8 Motor Connector). Drawing for 3 Stage Gearbox 91 Gear Ratio only.PGD024-SE2-91AAA
Part Number: PGD024-SE2-91AAA
Updated: 28-Aug-2023 Format: pdf
Description: Pulse Geared Drive (PGD) with Senergy-Ai technology (M8 Motor Connector). Drawing for 3 Stage Gearbox 91 Gear Ratio only.PGD024-SE2-xxAAA 2-Stage
Part Number: PGD024-SE2-xxAAA
Updated: 28-Aug-2023 Format: STEP
Description: Pulse Geared Drive (PGD) with Senergy-Ai technology (M8 Motor Connector). 3D model for 2 Stage Gearboxes.PGD024-SE2-xxAAA 3-Stage
Part Number: PGD024-SE2-xxAAA
Updated: 28-Aug-2023 Format: STEP
Description: Pulse Geared Drive (PGD) with Senergy-Ai technology (M8 Motor Connector). 3D model for 3 Stage Gearboxes up to 67 Gear Ratio.PGD024-SE2-xxAAA
Part Number: PGD024-SE2-xxAAA
Updated: 28-Aug-2023 Format: DWG
Description: Pulse Geared Drive (PGD) with Senergy-Ai technology (M8 Motor Connector). Same drawing for 2 & 3 Stage Gearboxes. 3 Stage Gearbox up to 67 Gear Ratio.PGD024-SE2-xxAAA
Part Number: PGD024-SE2-xxAAA
Updated: 28-Aug-2023 Format: pdf
Description: Pulse Geared Drive (PGD) with Senergy-Ai technology (M8 Motor Connector). Same drawing for 2 & 3 Stage Gearboxes. 3 Stage Gearbox up to 67 Gear Ratio.
Installation Manual - PGD-Ai
Document: Installation Manual for Senergy-Ai Pulse Gear Drive (PGD-Ai)
Updated: 19-Oct-2023 Format: .pdf
Description: Installation Manual for Senergy PGD-Ai models.Installation Manual - PGD
Document: Installation Manual for Senergy Pulse Gear Drive (PGD) (Standard JST Models)
Updated: 19-Oct-2023 Format: .pdf
Description: Installation Manual for Senergy PGD Standard JST models.
CE and UKCA Decleration
Specification: RoHS Declaration of Conformity
Updated: 30-Mar-2023 Format: PDF
Description: Declaration of Conformity for CE and UKCA for all Senergy and Senergy-Ai products.
CE and UKCA for PGD and PGD-Ai
Specification: CE/UKCA Declaration
Updated: 17-Mar-2023 Format: PDF
Description: CE and UKCA Delcaration of Conformity for all for all PGD and PGD-Ai models.
REACH Annex XVII Certificate
Specification: REACH Annex XVII Certificate
Updated: 30-Mar-2023 Format: PDF
Description: Certificate of Compliance with REACH Annex XVII for Senergy and Senergy-Ai products.
RoHS Declaration of Conformity
Specification: RoHS Declaration of Conformity
Updated: 06-Apr-2021 Format: PDF
Description: Declaration of Conformity for RoHS Directive 2015/863/EU (RoHS 3) for all Senergy and Senergy-Ai motor units.
UL Certificate of Compliance
Title: UL Certificate of Compliance
Updated: 22-Mar-2022 Format: PDF
Description: UL Certificate of Compliance for Senergy and Senergy-Ai motor units as UL Recognized devices for US/CSA per UL Specification 1004-1 / CSA C22.2 NO. 100.

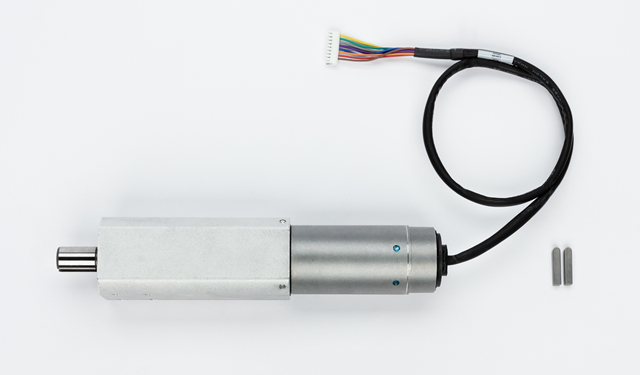

Senergy (Standard 9-Pin JST Motor Connector)

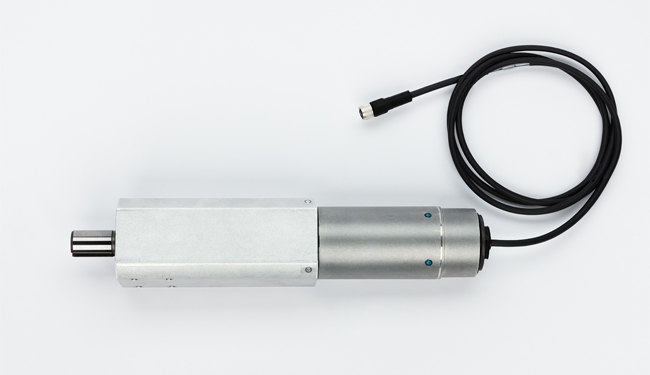

Senergy-Ai Technology (4-Pin M8 Motor Connector)
Accessories
PGD-Ai Washdown ModelIP66/69K Rated
- Same motor & gearbox construction as standard PGD-Ai but in a stainless steel package
- Nitrile seals as standard - option for Viton seals available
- Same shaft and keyway design as standard PGD-Ai
PGD024-SE2-xxWAA 2-Stage 3D STEP
Part Number: PGD024-SE2-xxWAA (2-Stage)
Description: PulseRoller Geared Drive, Washdown IP66, 2 Stage Gearbox version 3D model in STEP formatPGD024-SE2-xxWAA 3-Stage 3D STEP
Part Number: PGD024-SE2-xxWAA (2-Stage)
Description: PulseRoller Geared Drive, Washdown IP66, 3 Stage Gearbox version 3D model in STEP formatPGD024-SE2-xxWAA
Part Number: PGD024-SE2-xxWAA
Updated: 28-Aug-2023 Format: DWG
Description: PulseRoller Geared Drive, Washdown IP66, 2 & 3 Stage Gearbox, Senergy-Ai, Standard 5x5x25 Keyway. PGD024-SE2-xxWAA
Part Number: PGD024-SE2-xxWAA
Updated: 28-Aug-2023 Format: PDF
Description: PulseRoller Geared Drive, Washdown IP66, 2 & 3 Stage Gearbox, Senergy-Ai, Standard 5x5x25 Keyway
